Name: Hwashi Cap Cover Automatic Spot Welding Machine with Multi Welding Station
Brand: Guangdong Hwashi Technology inc.
SKU: Wl-MF-50K
Price: 157,805.00 USD
Availability: InStock

Σπίτι > προϊόντα > Μηχανή συγκόλλησης σημείων >

Hwashi Cap Cover Automatic Spot Welding Machine with Multi Welding Station

automatic spot welding machine

multi welding station machine

cap cover spot welder

Τόπος καταγωγής:

Κίνα

Μάρκα:

HWASHI

Πιστοποίηση:

CE/CCC/ISO

Αριθμό μοντέλου:

Wl-MF-50K

Μας ελάτε σε επαφή με

Ζητήστε ένα απόσπασμα

Λεπτομέρειες προιόντος

Όνομα προϊόντος:

Ηλεκτρονική μηχανή συγκόλλησης με πολλαπλό σταθμό συγκόλλησης

Εφαρμογή:

Κάλυψη καπάκιας συγκόλλησης / κέλυφος

Μέγεθος:

1900x800x1600 χιλιοστά

Διάρκεια ζωής:

8-10 χρόνια

Βάρος:

600 κιλά

Εγγύηση:

12 μήνες

Πρότυπο:

CE/CCC/ISO

Όροι πληρωμής & ναυτιλίας

Ποσότητα παραγγελίας min

1 σετ

Τιμή

Διαπραγματεύσιμα

Συσκευασία λεπτομέρειες

Sea Worthy Wood Package

Χρόνος παράδοσης

7-30 εργάσιμες ημέρες μετά την παραλαβή της πληρωμής σας

Όροι πληρωμής

Λ/Κ, , T/T

Δυνατότητα προσφοράς

50 σετ το μήνα

Συγγενικά προϊόντα

Βίντεο

Hwashi 220-380V Stainless Steel Capacitor Discharge Spot Welder Stainless Steel Milk Pot Welding Machine, Pot Handle Spot Welder

Πάρτε την καλύτερη τιμή

Βίντεο

HWASHI WL-MF-250K Vertical Type Metal Sheet Medium Frequency Inverter Spot Welding Machine

Πάρτε την καλύτερη τιμή

Βίντεο

Hwashi Automatic Steel Wire Ring Making and Welding Machine / Butt Welding Machine

Πάρτε την καλύτερη τιμή

Βίντεο

HWASHI Wire Diameter 2-8mm Automatic ring making butt welding machine Circle Ring Bar Pneumatic Resistance Butt Welding Machine

Πάρτε την καλύτερη τιμή

Μας ελάτε σε επαφή με

+8613380655800

marketing@hwashi.com

Επαφή τώρα

Περιγραφή προϊόντων

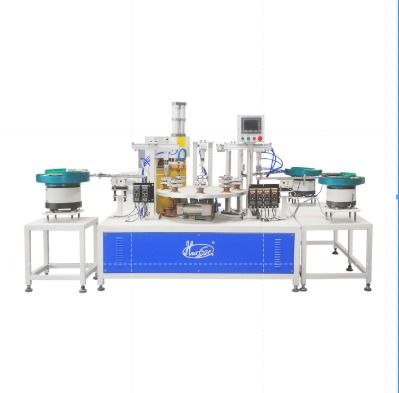

Hwashi Cap Cover Automatic Spot Welding Machine with Multi Welding Station

Hwashi Cap Cover Automatic Spot Welding Machine with Multi Welding Station 0

Product description

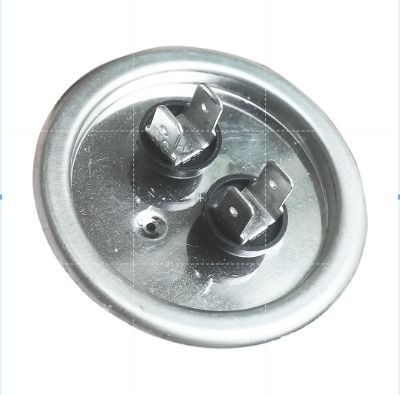

HWASHI Full Automatic Rotary Table Spot Welding Machine for Nut, Capacitor Welding is designed as automatic welding, automatic rotating and automatic discharging. The machine is of 8 welding positions, so it can achieve cycle working and continuous welding. Moreover, medium frequency inverter power source is adopted with features of high power factor, electricity and energy saving, and it can achieve stable and reliable welding spots. Only need to change the fixtures (welding moulds) then the machine can achieve welding different products. The present design could help you weld product with different dimensions. The main welding part of Multi-station CNC Automatic Rotary Spot Welding Machine is equipped with automatic rotating device. The operator only needs to put the work piece onto the rotary device. He can put 8 work pieces at most for one time. Then start “welding”, the main welding body will conduct welding. After welding the No. 1 work piece, the rotating device will rotate, then the No.2 work piece will be moved to the welding position, cycle process will continue. In the meantime, the welded work piece will be discharged automatically in turn and the operator could keep putting new work piece onto the certain position. In such design, the machine is of fast speed and high efficiency.

Hwashi Cap Cover Automatic Spot Welding Machine with Multi Welding Station 1

Multi Station Special Designed Fixture

We will design the fixture according to your actual product.

Automatic Vibration Feeding Plate

It will feed the small parts to the fixture automatically.

And the machine will do assembly and welding automatically.

Hwashi Cap Cover Automatic Spot Welding Machine with Multi Welding Station 3

Automatic Loading and Unloading Mechanical Arm Final Product Quality

Technical Parameters of Full Automatic Rotary Table Spot Welding Machine
1	Input Voltage	380V three-phase
2	Input Current	150A
3	Output Voltage	DC11.6V
4	Max Short Circuit Current	32000A
5	Welding Models	32 types
6	Rotary Table Diameter	800mm
7	Rotary Table Material Positions	6-8 positions
8	Rotary Table Rotating Speed	0.5m/sec

Hwashi Cap Cover Automatic Spot Welding Machine with Multi Welding Station 5
